Product Overview

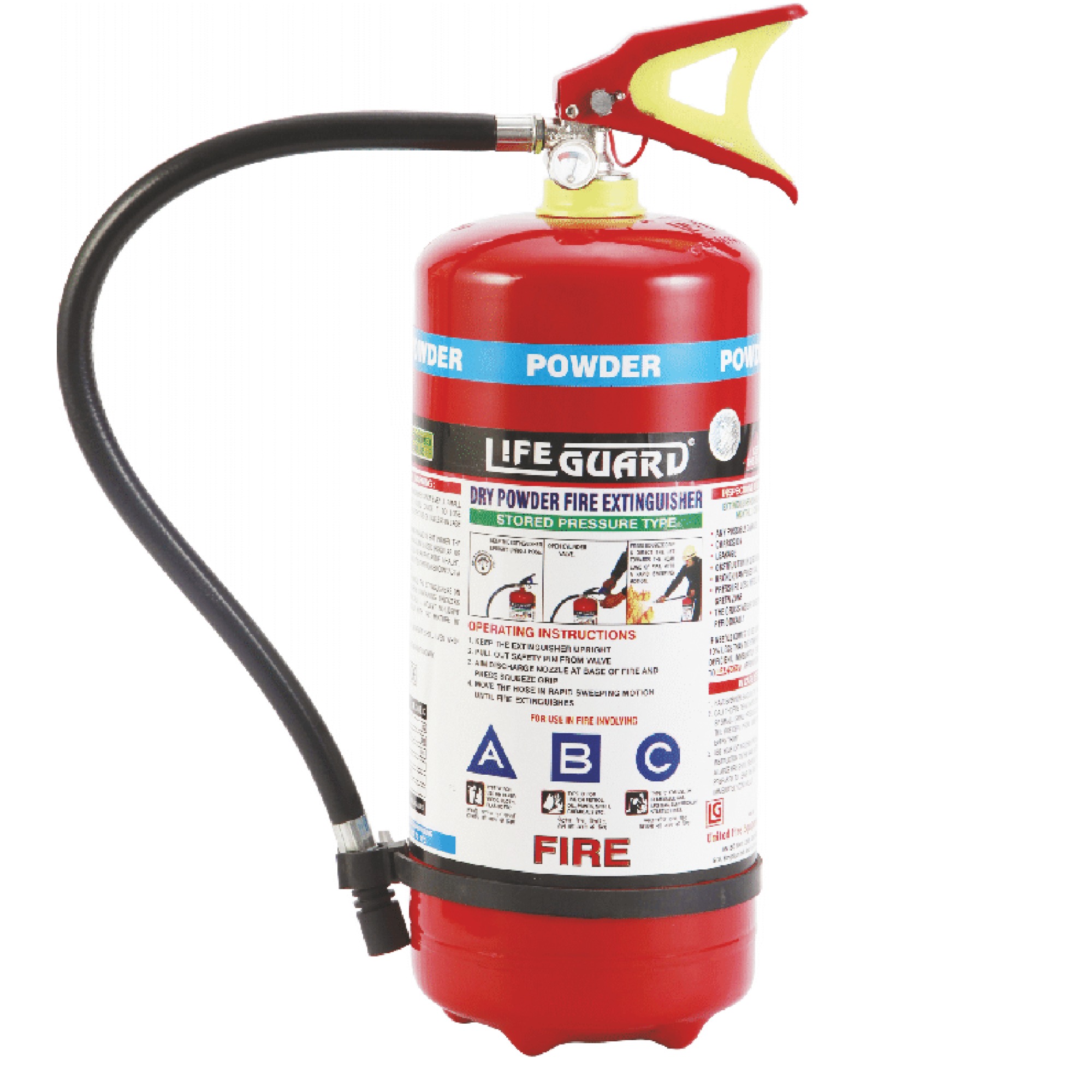

LIFEGUARD Powder Based Fire Extinguishers are charged with high-quality dry chemical powder designed to rapidly knock down flames by interrupting the chemical reaction of fire. These extinguishers are suitable for Class A, Class B, and Class C fires, offering all-round protection in residential, commercial, and industrial environments.
Types of Fires Covered
- Class A: Solid combustible materials such as wood, paper, cloth, and plastics
- Class B: Flammable liquids including petrol, diesel, oil, paint, and solvents
- Class C: Flammable gases such as LPG, CNG, propane, and butane
Note: Powder based extinguishers are safe for use on live electrical equipment as the powder is non-conductive.
Key Features
- Rapid Fire Knockdown: Quickly suppresses flames and prevents re-ignition
- Multipurpose Protection: One extinguisher for multiple fire classes
- Non-Conductive Powder: Safe for electrical installations and equipment
- High Discharge Efficiency: Provides wide spray coverage and effective reach
- Rugged Construction: Heavy-duty, corrosion-resistant body for long service life
- User-Friendly Operation: Simple squeeze-grip mechanism for quick response
Construction & Design
- Seamless or welded mild steel cylinder with durable red epoxy powder coating
- Dry chemical powder conforming to applicable IS/EN standards
- Brass or aluminium valve assembly with safety seal and pressure gauge
- High-strength hose and nozzle for controlled discharge
- Wall mounting bracket supplied for easy installation
Technical Specifications (Indicative)
- Extinguishing Medium: ABC Dry Chemical Powder
- Capacity Range: 1 kg, 2 kg, 4 kg, 6 kg, 9 kg, and above
- Operating Pressure: As per IS specifications
- Test Pressure: Higher than working pressure for safety assurance
- Operating Temperature: –20°C to +55°C
- Discharge Time: Approx. 10–25 seconds (depending on capacity)
Applications
LIFEGUARD Powder Based Fire Extinguishers are ideal for use in:
- Offices and commercial buildings
- Factories and warehouses
- Electrical panels and server rooms
- Petrol pumps and fuel storage areas
- Residential complexes
- Vehicles, DG sets, and workshops
Advantages
- Cost-effective and highly efficient fire protection
- Minimal training required for operation
- Suitable for high-risk and mixed-hazard areas
- Easy maintenance and long shelf life
Quality & Compliance
All LIFEGUARD fire extinguishers are manufactured and tested in compliance with relevant IS standards and undergo strict quality checks to ensure reliability, safety, and performance in emergency situations.
Conclusion
When seconds matter, trust LIFEGUARD Powder Based Fire Extinguishers to deliver dependable fire protection. Designed for versatility, durability, and quick action, they are an essential component of any comprehensive fire safety plan.
LIFEGUARD – Protecting Life, Property, and Peace of Mind.
Technical Specifications – Powder Based Fire Extinguisher (LIFEGUARD)
Parameter Specification
Type - Stored Pressure Type
Extinguishing Medium - Dry Chemical Powder (ABC Type)
Fire Rating - Suitable for Class A, B & C Fires
Cylinder Material - Mild Steel (Seamless / Welded)
Finish - Red Epoxy Powder Coated
Capacity - 1 kg, 2 kg, 4 kg, 6 kg, 9 kg, 25 kg
Propellant Gas - Nitrogen (N₂)
Operating Pressure - 12–15 bar @ 27°C
Test Pressure - 25–30 bar
Discharge Time - 10–30 seconds (capacity dependent)
Discharge Range - 3–6 meters
Operating Temperature - (–20°C to +55°C)
Valve Assembly - Brass / Aluminium Alloy
Safety Device - Pressure Gauge, Safety Valve, Pull Pin
Hose & Nozzle - Rubber Hose with High-Impact Plastic / Aluminium Nozzle
Electrical Safety - Non-conductive, safe for live electrical equipment
Mounting - Wall Bracket / Vehicle Bracket (as applicable)
Refilling - Refillable, Easy Maintenance
Standards - IS: 15683 / IS: 2190 (as applicable)
Colour - Red (as per fire safety norms)
